86400-8006-805

| Technical specification sheet | |||

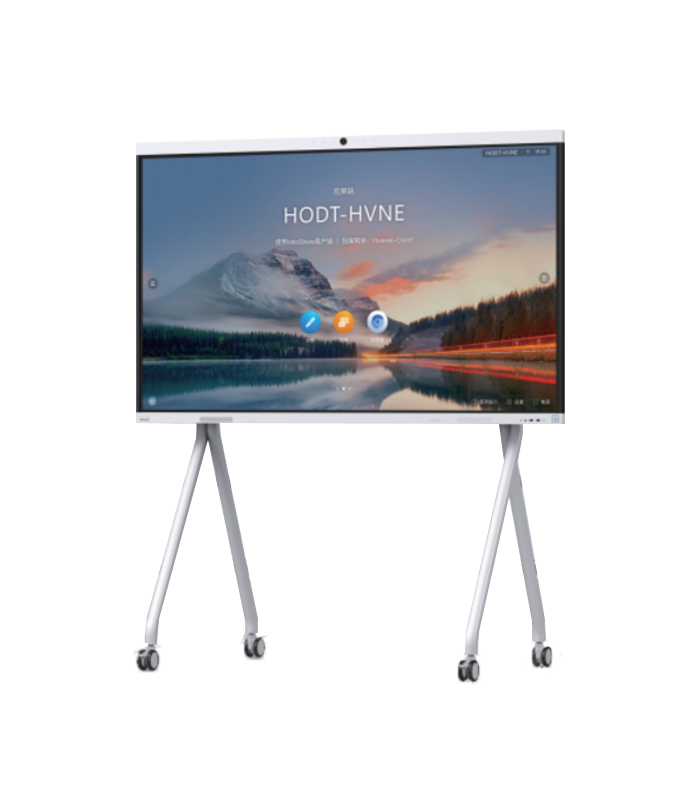

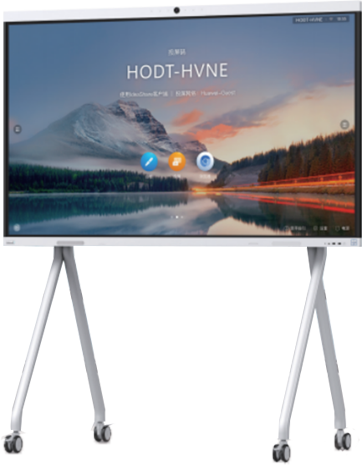

| Product name | IdeaHub B2 - G | ||
| | Model number: | ||
| Product dimensions (L x W x H) : 65" 1484.5mm x 91.6mm x 916.1mm | |||
| Package dimensions (L x W x H) : | |||
| Components | |||
| Complete machine | Stylus | Matching cable | |
| 1 set | 2 pieces | Power cord x 1 | |
| Floor stand * | Wall hanging brackets * | Smart screen projector | |
| Optional (65", 75", 86" universal) | Optional (65", 75", 86" general) | Optional (Type-A/Type-C interface) | |
| OPS plug-in computer | | | |
| Optional | | | |
| Screen | |||
| Resolution | Type of backlight | Laminating process | |
| Ultra HD 4K (3840x2160) | D-LED | Zero fit | |
| Viewing Angle | Color depth | Gamut | |
| 178° | 10bit (8bit +FRC) | 85%NTSC (typical value) | |
| Screen refresh rate | Touch points | | |
| 60Hz | 20 o 'clock | | |
| Camcorder | |||
| Lens zoom | Maximum viewing Angle | Resolution | |
| 2x digital variation set | Horizontal: 80°/ Vertical: 50° | 4K | |
| TV Distortion | Aperture | | |
| <2% | F1.8 | | |
| Speakers | |||
| Frequency domain | Speaker unit | Stereo | |
| 100Hz~20kHz | 2 full frequency units +2 high frequency units | Support | |
| Maximum power | | | |
| 30W | | | |
| microphone | |||
| Pickup Angle | Number of microphones | Frequency domain | |
| 180° | 6 | 100Hz20kHz | |
| Pickup distance | | | |
| 10m | | | |
| Wireless connection | |||
| Dual WI-FI modules | Frequency | | |
| Support | 2.4GHz + 5GHz | | |
| System | |||
| CPU | RAM | Flash | |
| 4Core | 4GB | 32GB* | |
| Operating system | | | |
| Android 9.0/windows 10* | | | |
| Interface | |||
| Front interface | Side port | | |
| USB Type-C x 1 | USB Type-A 3.0 x 1 | RJ45 Network Port x 1 | 3.5mm Line-out x 1 |
| USB Type-A 3.0 x 2 | USB Type-B x 1 | 80pin OPS interface x 1 | HDMI OUT x 1 |
| | HDMI IN x 2 | 3.5mm Line-in x 1 | COM port x 1 |
| Conference | |||
| Adaptation meeting | | | |
| Huawei Cloud Conference SmartRooms:1080P 25fps video + 1080P 25fps/1080P 15fps material sharing | |||
| Tencent Conference Ro0ms: 1080P video | |||
| Screen Projection | |||
| Screen casting method | Screen effect | Screen casting client support system | |
| IdeaShare screen projection code | Wireless projection supports up to 4K30fps | Android / Windows / iOS / macOS | |
| HDMI, Type-C wired projection | Wired projection screen supports up to 4K60fps | | |
| Smart screen projector | | | |
| NFC one touch cast, drop down menu cast screen | | | |
| Cast screen comments | Reverse control | | |
| Support | Support | | |
| Writing | |||
| Writing delay | Writing accuracy | Intelligent writing recognition | |
| ≤25ms | ±1mm | Support | |
| Self board save way | Touch height | | |
| Scan code/mail/local/USB flash drive | 1.5 mm or less | | |
