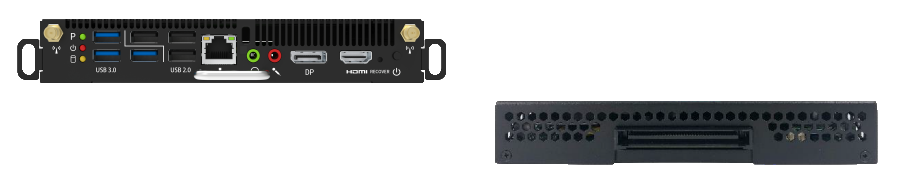

ICD OPS i5 D-G

The ICD OPS i5 D-G uses an Intel® Core™ I5-10500 processor and complies with the Intel® OPS-C industry specification. Supports DDR4 dual-channel memory; Support M.2 SSD storage; In addition, the ICD OPS i5D uses the latest generation Intel ® Hypercore integrated graphics card to provide superior image processing capabilities and support 2 independent 4K2K video outputs. Suitable for scenarios such as digital signage, educational and conference electronic whiteboards.

Technical Specification

CPU Support	Intel® Core™ processor
Chipset	Intel® H510 PCH
Graphics card	Intel®UHD Graphics 630
Memory	8GB DDR4 (4GB by 2)
Storage	1x M.2 2280128GB SSD storage
Motherboard interface	1×Power button1×Restore button1×RJ45 3xUSB 3.0 3xUSB 2.0 1x HDMI1.4 1x DP1.2 1x Audio Output 1x audio input
Expansion	1x M.2 2230 Wi-Fi/ Bluetooth 2-in-1 module AC3168
Environment	Operating Temperature: 0℃-40℃Storage Temperature: -20℃-70℃Humidity: 5%-95% (non-condensing)
Physical properties	Dimensions Width × Length × Height: 195mm × 180mm × 30mmColor: BlackNet weight: about 1.5kg
Operating system	Windows 10 IoT Enterprise Edition
Power Supply	DC 19V/4.74A Power 90W
Certified	CCC/SRRC/VCCI/BQB/RoHS/REACH/WEEE/CE/CB, etc

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
