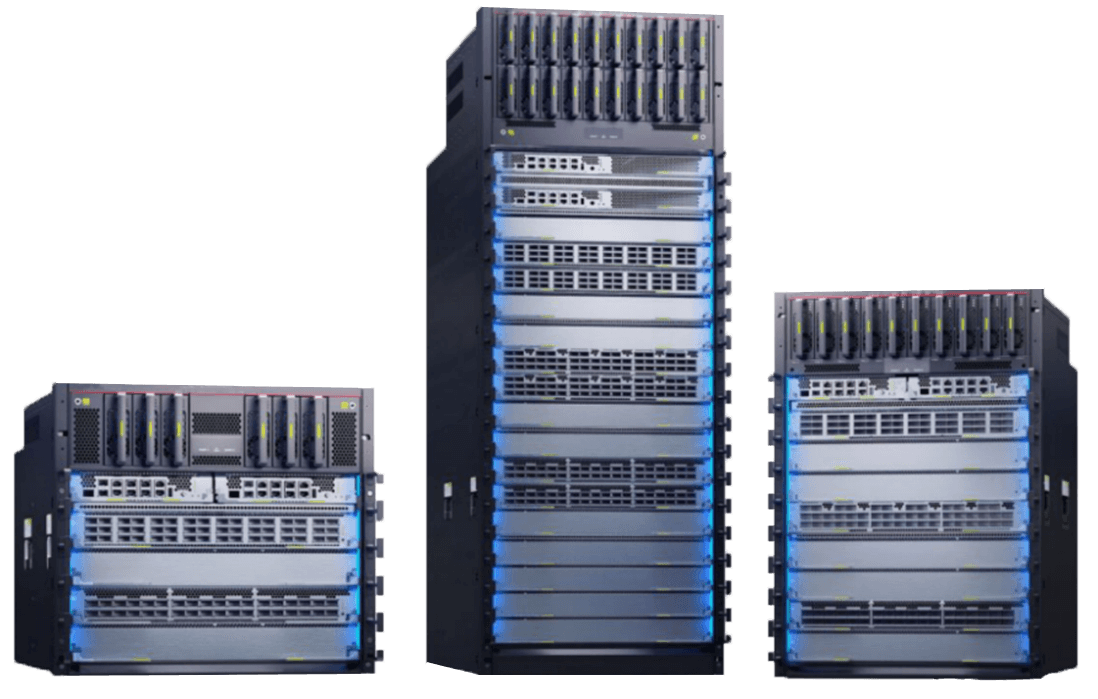

CloudEngine 16800-G
Data Center Switch
CloudEngine 16800-G
The CloudEngine 16800-G The first data center switch for the era of multiple computing power. It carries the original iLossless intelligent lossless switching algorithm, learns and trains the whole network traffic in real time, realizes network zero packet loss and E2E μs class delay, and achieves the highest throughput. At the same time, it can make NVMe run more efficiently, fully release the potential of all-flash memory, support NOF+ technology, and realize the plug and play of storage network and fast fault perception. On the basis of providing stable, reliable and high-performance L2/L3 layer switching services, it can build an intelligent, minimalist, secure and open data center cloud network platform for customers. The CloudEngine 16800-G series adopts advanced hardware architecture design. Provide 10 ge/25 ge/40 ge ge ge/400/200/100 ge flexible port selection. The CloudEngine 16800-G series features industry-leading backplane less Clos orthogonal architecture and industrial-grade reliability, as well as rigorous front and rear air duct design, and supports rich data center features. In addition, CloudEngine 16800-G, as a new generation of core switches, uses a variety of green and energy-saving innovations to significantly reduce equipment energy consumption.
Technical Specification

Items

CloudEngine 16804-G

CloudEngine 16808-G

CloudEngine 16816-G

Exchange Capacity (Tbps)

714/2142

1428/4284

2856/8568

Packet Forwarding Rate (Mpps)

230,400

460,800

921,600

Service Slot

4

8

16

Switching Network Slot

9

Switching Architecture

Clos orthogonal architecture, cell switching, VoQ

Duct Types

Standard front and rear air ducts

Chassis Dimensions (W × D × H)

483mm × 985mm × 438mm (9.8U)

483mm × 985mm × 703mm (15.8U)

483mm × 1144mm × 1436mm (32.3U)

System Chassis Weight (empty)

94.1kg

129.8kg

273.8kg

Operating Voltage

AC: 176V to 290V

DC : -40 V to -72 V

HVDC : 188V to 288V/260V to 400V

/

/

Maximum Power Supply Capacity of the System

18000W

30000W

60000W


* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
