86400-8006-805
Physical parameters
| Items | Description |
| Overall dimensions (height x width x depth) | 43.6 mm *442 mm * 440 mm |
| Type of interface | 2 x 40G(QSFP+)+12 x 10GE(SFP+)+12 x GE 1 x ETH management port 1 x Console port 1 x USB3.0 NOTE One 40G and four 10G are mutually exclusive. |
| Maximum power consumption | 202.5W |
| Weight | 5.83 KG |
| Operating temperature and altitude | -60m to +1800m: 0℃to +45℃1800m to 5000m: The maximum operating temperature is reduced by 1℃for every 220m increase in altitude |
| Relative humidity | 5%RH to 95%RH, non-condensing |
| Power module | Supports AC and DC power supply, hot swap, and hot backup NOTE A maximum of 2 power supplies can be configured. |
Performance specifications
| Items | Description |
| The number of aps can be managed | Central AP: 768 Normal AP and remote unit: 10240 Instructions The number of remote units managed by the WLAN AC does not occupy the license resources of the WLAN AC. However, the total number of common aps and remote units that the WLAN AC can access cannot exceed the specifications. 10K needs to be upgraded to the R23C00 version. |
| Maximum user access capability | 102400 Instructions The number of access users varies according to different authentication methods. |
| Number of MAC address tables | 153600 |
| Forwarding capability | Direct forwarding: 160Gbps Tunnel forwarding: 160Gbps |
| Number of vlans | 4096 |
| Number of routing entries | IPv4:16384 IPv6:4096 |
| Indicates the number of ARP entries | 153600 |
| Number of multicast entries | 2048 |
| Number of DHCP IP address pools | The maximum number of address pools is 256. The maximum number of addresses that can be assigned to each pool is 131072 |
| Local accounts | 6000 |
| Number of access control lists | 32768 |
| Models | Wireless Access Controller - High-end model |
| AirEngine 9703-H-G | Airengine 9703-H-G host (8 Gigabit Combo ports,16 10-Gigabit SFP+,2 40-gigabit QSFP+, no power) |

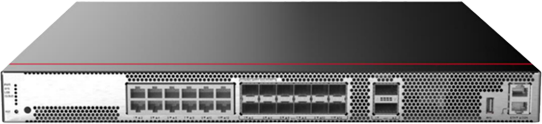

| AC6805-G | AC6805-G host (12 Gigabit Ethernet ports,12 10-gigabit SFP+,2 40-gigabit QSFP+, no power) |
| | |
| Model | Wireless Access Controller - Standard |
| AirEngine 9703-S-G | AirEngine9703-S-G host (8 Gigabit Combo ports,16 10-gigabit SFP+,2 40-gigabit QSFP+, no power supply) |
| AirEngine 9700-M1-G | Airengine 9700-M1-G host (12 Gigabit Ethernet ports,12 10-Gigabit SFP+,2 40-Gigabit QSFP+, no power) |
| | |
| Model number | Wireless Access Controller - Lite version |
| AirEngine 9701-L-G | Airengine 9701-L-G host (10 GE electrical ports,2 10GE optical ports, including AC/DC power adapter) |
| AC6508-G | AC6508-G mainframe (10 Gigabit Ethernet ports,2 10-gigabit SFP+, including AC/DC power adapter) |
