Form

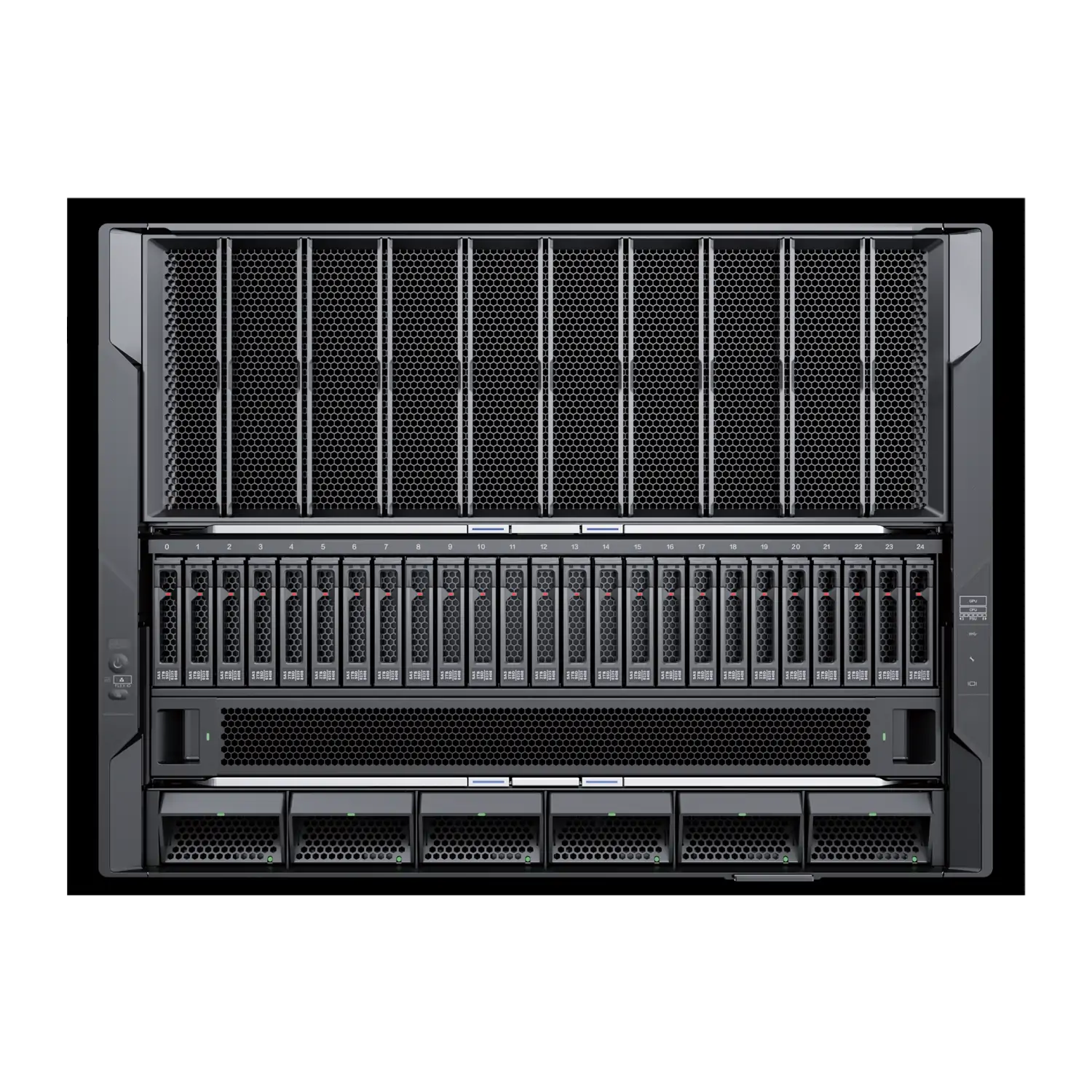

8U GPU server

Processor

Two fourth generation Intel ® xeon ® Scalable processor (Sapphire Rapids), supporting a maximum power of 350W per processor

Chipset

Emmitsburg PCH

Memory

32 flexible memory slots available, supporting 4800MT/s, with a maximum capacity of 128GB per slot

Local Storage

Supports multiple different hard drive configurations, and the hard drive supports hot swapping:

Up to 25 2.5-inch SAS/SATA hard drives can be configured

Up to 8 NVMe SSD drives can be configured, supporting Flash storage: dual M.2 SSDs

RAID Support

Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions

GPU Acceleration Module

Support 8GPU module

Network

Multiple network expansion capabilities, supporting up to 2 OCP 3.0 network cards, optional according to needs, supporting notification based hot plugging

PCle Extension

Up to 23 PCIe expansion slots, including 20 PCIe standard slots, 2 OCP 3.0 slots, and 1 built-in RAID card slot

Fan

GPU area: 10 54V fans, supporting N+1 redundancy; CPU area: 5 12V fans, supporting N+1 redundancy

Power Supply

The
54V power supply area
can beconfigured with up to6 hot swappable power modules, supporting N+1redundancy:
-3000W AC titanium power supply
1500W
(input: 100V AC~180VAC)
2500W (input: 180V AC~200V AC) 3000W (input: 200V AC~264V AC) 12V power supply area can be configured with 2 hot swappable
power modules, supporting N+N redundancy:
-3000W AC titanium power supply2500W (input: 200V AC~220V AC) 2900W (input: 220V AC~230V AC)3000W (input: 230V AC~240V AC)

Administration

IBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features:

-IBMC supports standard interfaces such asRedfish, SNMP, IPMI2.0,etc;  Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity

-Optional FusionDirector management software, providing advanced management features such as five intelligences, toachieve intelligent, automated, visualized, and refined management throughout theentire lifecycle

Operating System

Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux

Security Features

Support security features such as power on password, administrator password, TPM 2.0, secure boot, etc

Working Temperature

5℃～35℃（41℉～95℉）

Product Certification

CQC, CE, RoHS, etc

Apt-get Install

Support L-shaped slides

Dimensions (height x width x depth)

356mm×447 mm×898 mm
