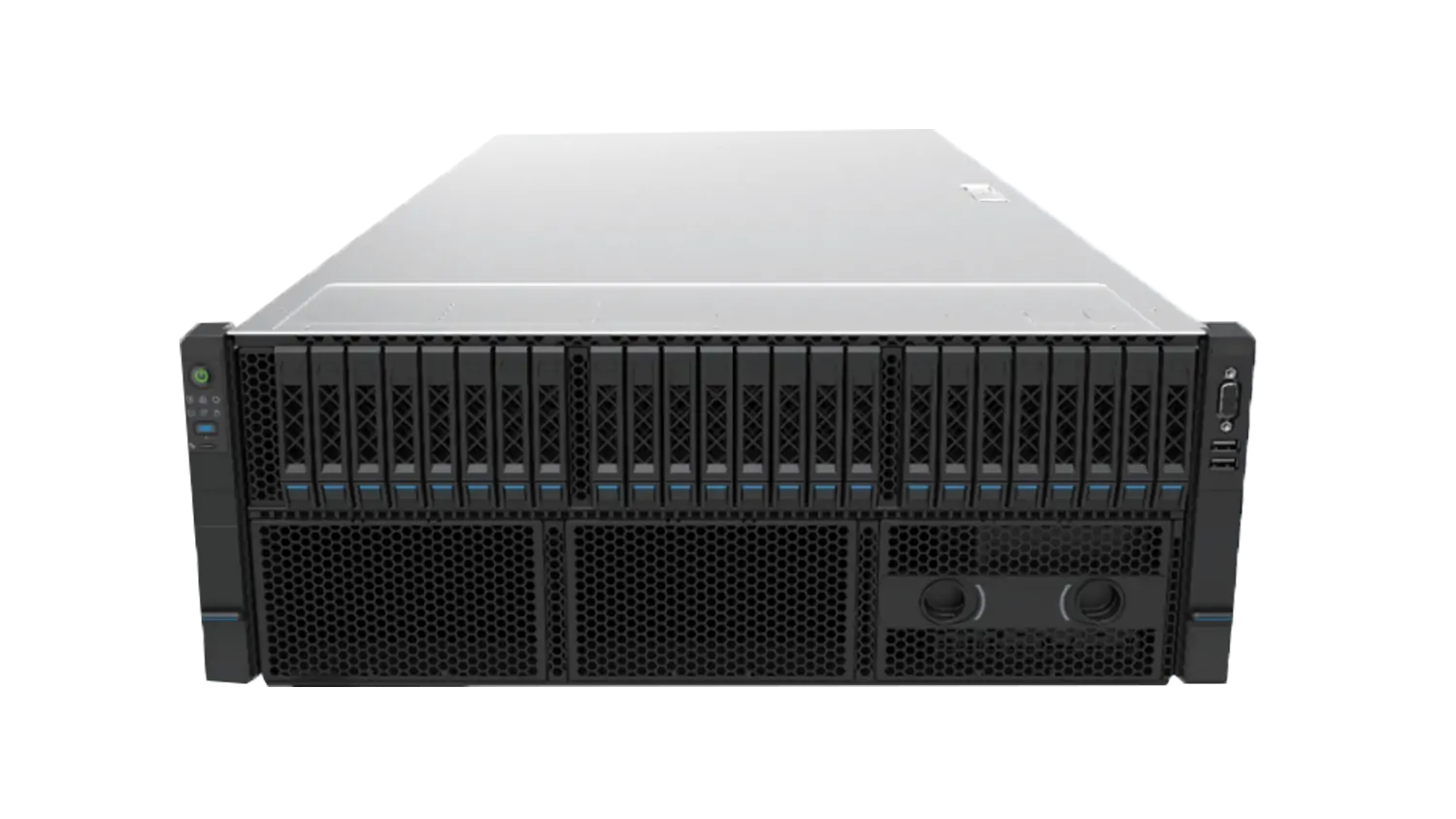

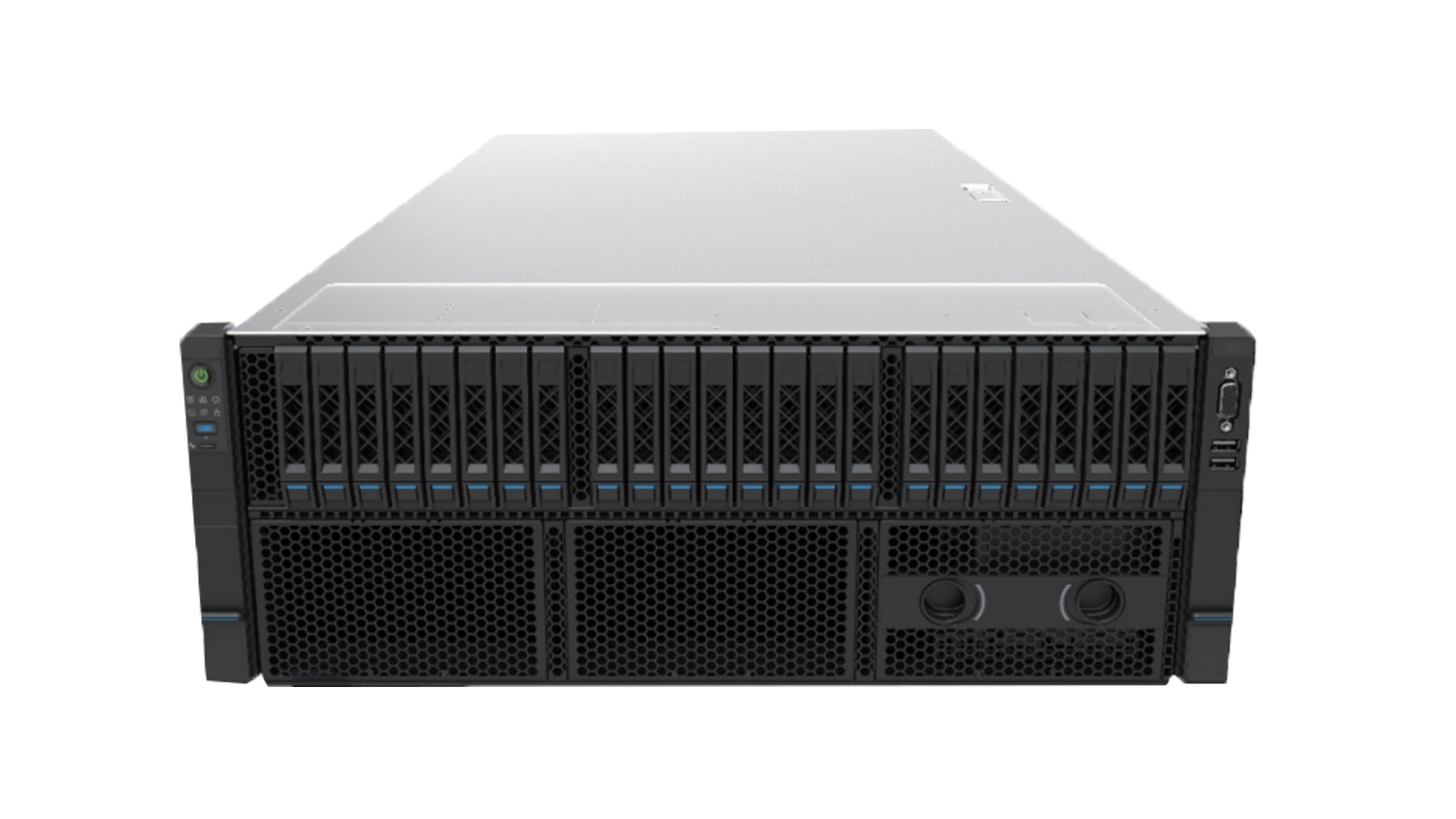

NF5468A7-G (AMD CPU)

The NF5468A7-G is the latest product, a new generation of artificial intelligence server with excellent multi-dimensional computing performance and flexible applicability in all scenarios. It is equipped with two AMD fourth generation processors with 5nm advanced process in a 4U space, providing up to 192 processor cores and up to 10 GPU acceleration cards. It supports the industry's strongest Al acceleration card and the most domestically produced AI chip. The CPU-GPU direct configuration greatly reduces data latency and improves GPU utilization. It is equipped with a self-developed resource platform AIStation for model research and development and production, creating the strongest adaptive multi-dimensional computing platform in the era of intelligent computing.

Technical Specification

Height	4U
CPU	Supports 2 AMD fourth generation EPYCs ™ Processor, cTDP 400W
GPU Card	Supports 10 full height, full length, dual width PCIe interface GPU cards
Memory	Supports 24 DDR5 4800MHz RDIMMs
PCIE Card	Supports up to 2 PCIE 5.0 extensions
Front end I/O	2 USB ports, 1 VGA port, 1 USB Type-C port
Rear I/O	1 serial port, 2 USB 3.0 interfaces, 1 RJ45 management port, 1 VGA, 1 OCP3.0 network card (supporting NCSI function)
Local Storage	Front 24 2.5-inch or 12 3.5-inch SAS/SATA hard drives, supporting up to 16 NVME or E3. S
Local Storage	Built in 2 M.2 NVME SSDs
RAID Support	Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc
RAID Support	Support Cache supercapacitor protection, provide RAID state migration, RAID configuration memory
Operating System	Mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu Linux, CentOS, etc
System Cooling	N+1 redundant system cooling fan
Power Supply	Four 1600W/2000W/2200W/3000W 80Plus Platinum/Titanium PSUs, supporting N+N redundancy
Chassis	447mm(W) × 174.5mm(H) × 850mm(D)
Working Temperature	5 - 35°C / 41°F - 95°F
Full Weight	≤87kg

* The descriptions and information displayed in the product promotional materials are for reference only. The actual delivered product shall prevail. The final interpretation right belongs to GLORY.
