Specifications

Network Layer

Access and Aggregation layer

Frequency

6 to 42 GHz

Channel Spacing

3.5/7/14/28/40/56/112 MHz

Modulation mode

QPSK Strong,QPSK,16QAM Strong,16QAM,32QAM,64QAM,128QAM, 256QAM,512QAM,512QAM Light,1024QAM,1024QAM Light,

2048QAM,4096QAM

RF Direction

12

Air-Interface Capacity

1166 to 2500 Mbit/s per carrier (none-XPIC)

Switching Capacity

·90 Gbit/s(CSHOF)
·10  Gbit/s(CSHO)

TDM Crossing

32x32 VC-4

Interface Type

E1, T1, STM 1 (e/o), FE (e/o), GE (e/o), 2.5 GE (o), 10 GE (o)

RF Configuration Mode

·N+0
·Nx(1+0)
·1+1
·N+1

·XPIC
·2×2  CA
·4x4   MIMO

Ethernet Function

·Ethernet LL,IEEE 802.3,and IEEE 802.1q/p service format adding or deleting,and exchange VLAN tags (IEEE 802.1q/p)
·ISIS,OSPF,BGP,RSVP,LDP
·Flow control(IEEE 802.3x)
·Link aggregation groups (IEEE 802.3ad LAG and L1 LAG)
·RMON (IETF RFC 2819)

Service Type

·Native Ethernetservices:E-Line service and E-LAN service
·PW-carried Ethernet services:E-Line service,E-AGGR service,and  E-LAN (VPLS)service (VPLS standing for virtual private LAN
·L3VPN,L2VPN  (VLL),CES,MCE

Key Feature

CES E1,IEEE 1588v2,USB startup,H-QOS,PLA/EPLA/EPLA+,AES-256 encryption,Anti-theft,1+1,N+1,XPIC,AM,TDM,PWE3/MPLS,SDB,L3VPN,CA,MIMO

IDU Weight

·5.4kg(1+0)
·6.2kg(1+1)

IDU Dimensions

442 mm x 220 mm x 88 mm

Enviroment

·Temperature:IDU -5℃ to +60℃; ODU-33℃ to +55℃
·Humidity:IDU 5%to 95%; ODU 5%to 100%

Power

- 38.4V to -57.6V

Typical Power Consumption(IDU+ODU)

·125 W(1+0,ISM6)
·228  W(1+1,ISM6)

Certificate

CE,RCM,FCC,IC,ETL,MCMC

Microwave

Model number

9XX-G series

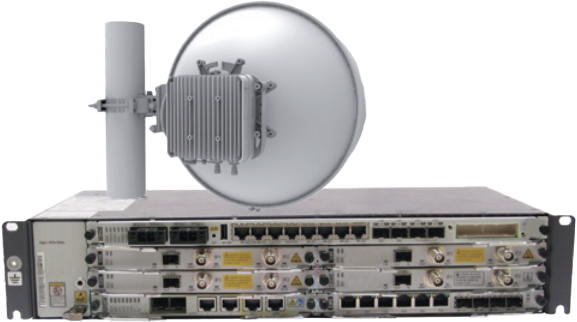

RTN950-G

RTN 950-G Basic configuration unit Dual Main control (CSHLF)+2*10GE/2.5GE/GE/(SFP+/SFP) Includes IDU installation materials

RTN950A-G

RTN 950A-G Basic configuration unit 4*GE(RJ45)+2*10GE(SFP+)+16*E1+2*GE/STM-1(SFP) Contains IDU installation materials

RTN910A-G

RTN 910A-G Basal Configuration 2*GE(RJ45)+4*10GE(SFP+)+16*E1+2*IF IDU Unit(-48VDC) Include IDU Installation Materials

RTN905F-G

OptiX RTN 905F-G Basic configuration unit 4*GE(RJ45)+2*GE(SFP)+4*10GE(SFP+)+2*STM-1(SFP)+16*E1+2 IF unit IDU module (-48VDC)-2F Contains IDU installation materials

MODEL

300-G series

RTN320F-G

OptiX RTN 320-G 2*GE(RJ45)+2*10GE(SFP+)+2*IF OAU2F Unit(-48VDC)

RTN380AX-G

RTN 380AX-G Low&High site(DC+P&E option, with 1000Mbps capacity, 250MHz channel space and 1GE interface)

Model number

69XX-G Series

RTN6900-G

Assembly Chassis,RTN 6900-G,MD11CASE, supports long and short range, E-band and N-band
